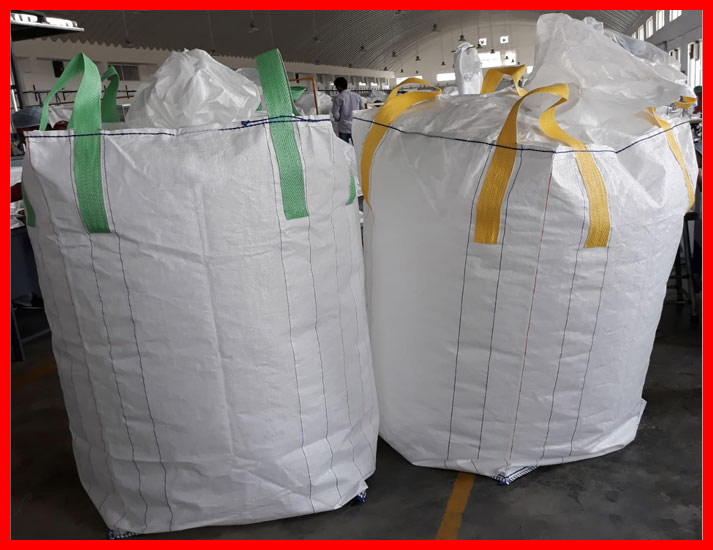

Flexible Intermediate Bulk Container (FIBC) / Jumbo Bags
We manufacture and supply Jumbo bags of diverse types such as regular jumbo bags, anti-static jumbo bags and conductive jumbo bags all over the globe at effective price.
FIBC Bags, also known as Jumbo Bags/ Bulk Bags, that we offer are cost effective packaging solution for storage & transportation of a wide range of materials such as chemicals, food, metal, etcetera.
We offer custom tailored FIBC bags or Jumbo bags to suit the individual requirement or custom requirements such as u + 2 and circular bags, ventilated bags, pre shaped liner bags, glued liner bags, certified food grade bags, dust proof bags, baffle bags, tunnel lift loop bags, single loop and two loop bags, UN Bags etc. Our FIBC bags are ideal and cost effective packing used for storage and transportation of a wide range of materials such as chemicals, food, metal etc. These bags have large storage capacity.
We offer bags for both single-trip (5:1) and multi-trip (6:1 or 8:1) purposes depending on the bag design and size. Safe Working Load (SWL) range of our bags starts from 250 kg up to 2000 kg. Its precise design and construction standards make these bags suited for a wide range of end products like Soda Ash, Dyes, Cement, Chemicals and others.
Benefits of FIBC Jumbo Bags:
- Reduces storage and transportation costs
- Flexible and strong
- Easy to recycle
- Available in diverse dimensions and sizes
- Cost effective
- Diverse easy facilities of filling, lifting and discharging
- Custom nature for material, plant and distribution system
- Can be utilised for hazardous chemicals packaging (specified in UN Chapter 6.5 Recommendations)
FIBC Customised Options:
U+2 Bags
We manufacture and supply our FIBC both domestically and globally to meet the needs of the agriculture, construction, aggregate, fertilizer, aquaculture, pet food products, rubber, chemical, food and pharmaceuticals industries.
Our Technical Experts design the bulk bags depending on the application and specific needs of the customers.
Check out other customization options below.
- SWLs between 500 – 6,000 pounds
- Labeling for product tracking
- Various fill and discharge spouts
- In-house tested and certified by external accreditation agency
Construction Type:
- U-panel bulk bag
- Circular bulk bag
- Four-panel bulk bag
- Baffled bulk bag
- Type C conductive
- Food grade bags
- UN Certified bulk bags
Loop / Handle Design Options:
- Standard four corner seams
- Cross corner loops
- Stevedore strap
- Single Loop
- Two Loop
- Cargo strap
- Sleeve / Tunnel
- Spread strap
- Bridge Loops
- Other than one-Loop and two-loops bags, the strap/loops material made of polypropylene, multifilament, fibrillated, comes in various colours.
Filling Design Options:
- Open Top
- Closing Flap (single or multiple, customised as per requirements)
- Full open Skirt / Duffle
- Filling spout / Inlet spout
- Inlet Conical spout
Above options are including closing strings made of PP webbing, PP rope and Velcro.
Type of Fabric to be used for making bags
- Made from 100% virign polyproylene resins
- Type of fabric according to application of the bag in Type A, B, and C fabrics
- Include (UV) resistance
- Manufactured to meet standard 5:1 a d 6:1 safety standards
- Meet food grade requirements (where applicable)
- GSM of the Fabric: Between 100 and 300 GSM
- Available in various colors
- Fabric can be coated / uncoated according to application of the bag.
Discharge / Unloading Options:
- Flat base
- Discharge / Unloading Spout
- Conical Discharge Spout
- Full Open Base
FIBC Accessories:
- Document pocket
- Labels
- Locks
- Dust-proof / sift-proof
Big Bag Inner Liners:
- We design inner liners according to the application and dimension of the bag.
- We can provide from 35 to 150 micron liners (LDPE Liners)
- Available type for liner – LDPE, Aluminium, conductive, EVOH
- Design Options for liner – circular, shaped, suspended.
- Fixing options – loosely inserted, glued, tabbed.
The standard bag includes builder bags, tunnel lift bags, corner and cross-corner loop bags with various top and bottom attachment options. The builder bags are primarily used to store construction materials like gravel, sand, stone etc. and are of the construction open top and flat bottom. Tunnel lift bags are an improved version of the builder bags which helps reduce manpower cost and filling time of the bags. Other applications of the standard bags include storage of chemicals, food and pharmaceuticals.
One-Loop & Two-Loop FIBC JUMBO BAGS:
One-Loop and Two-Loop Bags are widely accepted as being more cost effective than the traditional Four- Loop Bags used based on a cost-to-weight transported ratio. The body-fabric of the bag is extended into a lifting loop which gives the bag a higher breaking strength and makes the FIBC easier to lift and its loops can be wrapped with coloured Sleeves that make truck operators for an easy operation of one-Loop or Two- Loop FIBC bags by either hook or fork. An inner liner is usually incorporated to keep the product being carried both clean and dry. These One-Loop & Two-Loop FIBC bags are used for storing, packaging and transporting of fertilizer goods like powders and minerals and also used in the agricultural sector.
Baffle Bags / Q Bag
Our Baffle Bag or Quad Bag (Q-Bag) is a innovative product in FIBC Industry. The major benefit of this bag is that it is functionally as well as aesthetically excellent. It provides the solution to comfortable bulk packaging. The baffle bag also provides convenience during process of transportation and storage of bulk materials. In addition, the construction of the bag helps in enhancing the quality of bulk packaging which in turn helps in secured stacking of the materials. Aesthetically, the firm construction of Baffle Bag helps it in remaining in square shape even after packing goods, which adds to the visual appeal of packages.
Types of Internal Baffle in our Baffle Bags
- Fabric Based Baffles
- Net Based Baffle Bags
UN FIBC Bags
To safeguard safety of men and materials as also environment protection, concerned authorities from United Nations (UN) and Department of Transportation have regulated the transport of dangerous goods by formulating directives to protect public health, to prevent pollution thereby keeping environment pure and clean.
If the product to be packed and transported falls into one of the UN’s nine Dangerous Goods classes, it must be packed and shipped in UN certified packaging, regardless of the transportation method by land or sea or air. Our experts design, develop and produce such UN bags to meet customised shipping needs of our customers. Such FIBC bags undergo various tests in order to comply UN guidelines, such as Top lift test, Drop test, Righting test, Tear test and Stacking test in in-house as well as external laboratories.
Classes of Dangerous Goods:
- Explosives
- Gases
- Flammable Liquids
- Flammable Solids
- Oxidizing Substances
- Toxic & Infectious Substances
- Radioactive Material
- Corrosives
- Miscellaneous Dangerous Good
